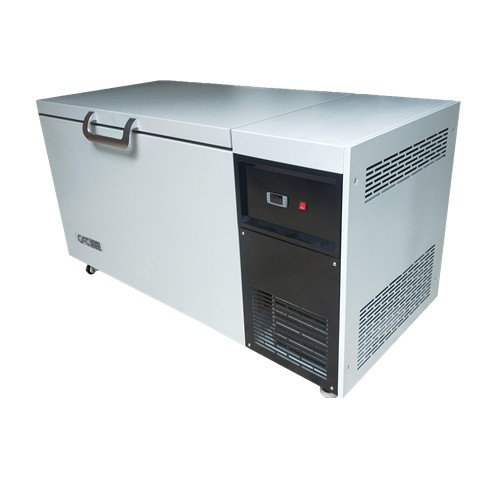

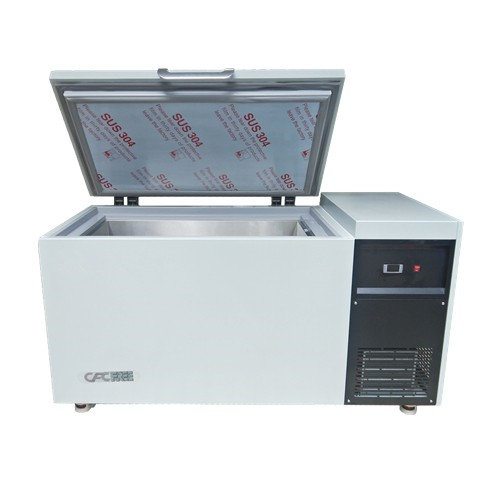

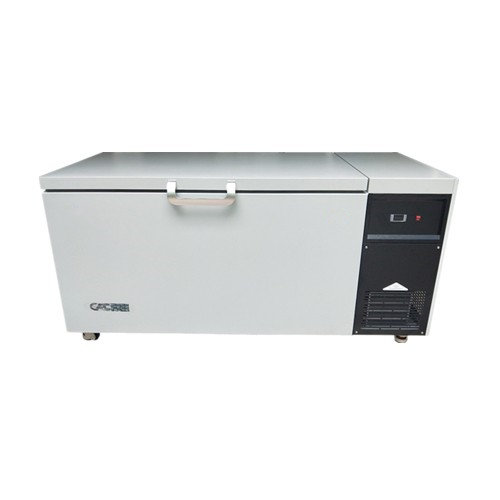

-86°C ultra low temperature chest freezer DW-86W105/200/300/480

-86°C ultra low temperature chest freezer DW-86W105/200/300/480

Applications:

The freezer is used for fresh storage of tuna and other high-end sea food at low temperature at Japanese restaurants, deep sea fishing, home and hotels etc. used for low temperature test and storage of electronic and chemical materials; also used for freezing storage of biological materials, samples and specimens at laboratories in institutes & universities, biotech, pharmaceuticals, agriculture & animal husbandry.

  • Description
  • Inquiry

Description

-86°C freezer,ultra low temperature chest freezer

DW-86W105/200/300/480

Features:

-86°C freezer,Unique ultra low temperature patent technology, superior performance(strong refrigeration, fast cooling and lower temperature),  high efficiency and lower energy consumption;

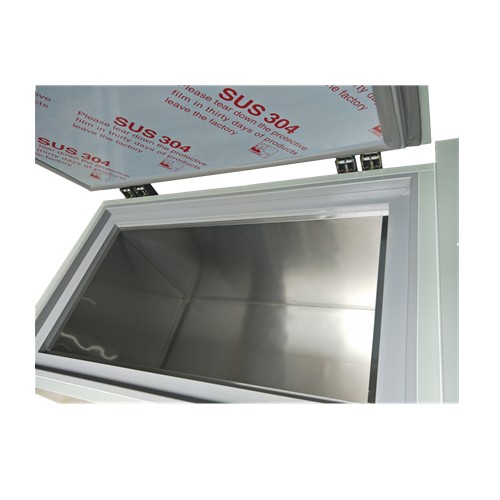

Major components such as compressor, thermostat and fan motor are world famous brands, copper tube evaporator and SUS 304 stainless steel interior, reliable and durable, ensure safety of stored samples;

Digital temperature display, the temperature inside freezer is easy to see; High/low temperature and sensor fault alarms, to know abnormal conditions in time;

Dual door gaskets and thick foam insulation, good thermal insulation and energy saving;

Fit with foot master heavy duty casters, easy moving;

CFC free mixed refrigerants & foaming agent, green and environmentally friendly.



Technical data:
ModelDW-86W105DW-86W200DW-86W300DW-86W480
Type of cabinetHorizontalHorizontalHorizontal Horizontal
Capacity105  liters200 liters300 liters480 liters
Temperature range-40°C to -86°C,

adjustable

-40°C to -86°C,

adjustable

-40°C to -86°C,

adjustable

-40°C to -86°C,

adjustable

Climate typeNNNN
Power supply220V/50Hz

115V/60Hz

220V/50Hz

115V/60Hz

220V/50Hz

115V/60Hz

220V/50Hz

115V/60Hz

Rated input450W500W600W700W
Protective classI/BI/BI/BI/B
Unit dimension1140*760*9301390*760*9301690*760*9301990*860*975
Inner dimension410*510*550mm710*510*580mm1010*510*580 mm1300*600*600 mm
Net weight100 kg160 kg180 kg240 kg
