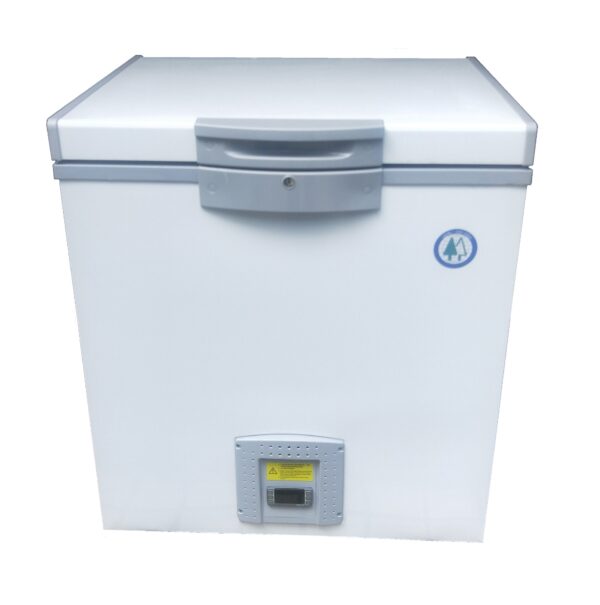

-86℃ ultra low temperature mini freezer DW-86W28/50

-86℃ ultra low temperature mini freezer DW-86W28/50


The freezer is used for fresh storage of tuna, spot prawn, scampi etc. deep seafood at low temperature at Japanese restaurants, deep sea fishing, home and hotels etc. also used for freezing storage of biological materials, samples and specimens at laboratories in institutes & universities, biotech, pharmaceuticals, agriculture & animal husbandry, electronics & chemistry, machine manufacturing, aerospace, military etc.

  • Description
  • Inquiry


-86℃ ultra low temperature mini deep freezer



mini deep freezer patent technology, superior performance(strong refrigeration, fast cooling and lower temperature),  high efficiency and lower energy consumption;

Major components such as compressor, thermostat and fan motor are world famous brands, copper tube evaporator and SUS 304 stainless steel interior, reliable and durable, ensure safety of stored samples;

Digital temperature display, the temperature inside freezer is easy to see; High/low temperature and sensor fault alarms, to know abnormal conditions in time;

Double gaskets and thick foam insulation, good thermal insulation and energy saving;

Fit with casters, easy moving;

CFC free mixed refrigerants & foaming agent, green and environmentally friendly.


 Technical data:

Capacity28 liters50 liters88 liters
Temperature range-40°C to -86°C,


-40°C to -86°C,


-40°C to -86°C,


Climate typeNNN
Power supply220V/50Hz220V/50Hz220V/50Hz
Rated input300W350W430W
Unit dimension565*485*785mm670*560*790mm670*670*795mm
Inner dimension350*270*285mm467*360*290mm465*465*395mm
Net weight40 kg45 kg50 kg
