-105℃ Cryogenic Freezer 105 Litres Chest Freezer
- Description
- Inquiry
Description

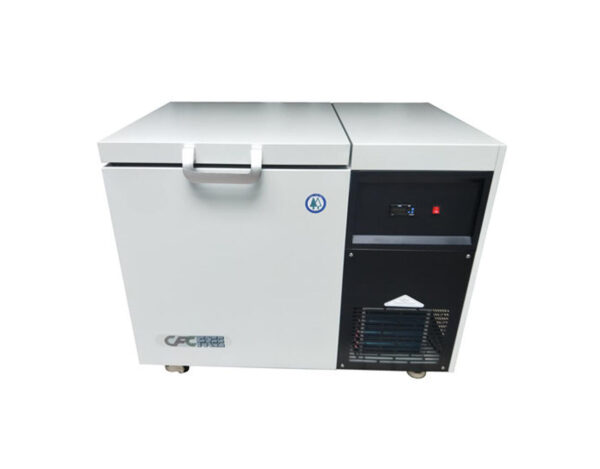

-105℃ cryogenic freezer 105 litres chest freezer
-105℃ cryogenic freezer 105 litres chest freezer
Applications
The laboratory ultra low temperature freezer is used for freezing storage of biological specimens, samples, materials and reagents at ultra low temperature at institutes, universities and laboratories related to research in the fields of life science,biological engineering, agriculture and animal husbandry; also used for low temperature tests and cold treatment of chemical materials, electronic components, metal parts and special materials in Industries of Chemical,Electronics, Mechanical Manufacturing, Shipbuilding, War Industry, Aeronautics & Astronautics etc..
Features
1. Patented technology of autocascade ULT refrigeration, strong cooling, quick freezing and low power consumption;
2. Major components are world famous brands, copper tube evaporator, stainless steel interior, hi/low temperature alarm (other alarms are also available as per buyer’s requirement), ensure reliable operation and safety of stored samples and materials;
3. Dixell electronic controller from Italy, digital temperature display, more accurately control, easy operation;
4. Casters with brake, easy moving;
5. CFC free mixed refrigerants & foaming agent, green and environmentally friendly.
| Model | DW-105W105 | |
| Type | Horizontal | |
| Capcity | 105 L | |
| Inside temperature | -60°C to -105°C, adjustable | |
| Climate class | N | |
| Power supply | 220V/50Hz, 110V/60Hz | |
| Rated input | 650W | |
| Power consumption | 8.8 kw.h/24h | |
| Protective class | I/B | |
| Cooling system | Single stage refrigeration system | |
| Compressor | SECOP | |
| Evaporator | Copper tube | |
| Condenser | Fan cooling fin type | |
| Condenser fan motor | EBM | |
| Refrigerant | Mixed CFC refrigerants | |
| Sensor | PT1000 | |
| Controller | Dixell, Electronic from Italy | |
| Temperature display | Digital display | |
| Alarm | Audible/visible | |
| Exterior | Powder coated steel | |
| Interior | Stainless steel | |
| Thickness of insulation | 150mm | |
| Door | Top open single foamed door | |
| Door handle & lock | Aluminum handle | |
| Unit dimension | 1140*860*930mm | |
| Interior dimension | 410*460*550mm | |
| Packing dimension | 1210*880*1120mm | |
| Net/gross weight | 110/153kg |
